Size accurate, and seamless lap joint

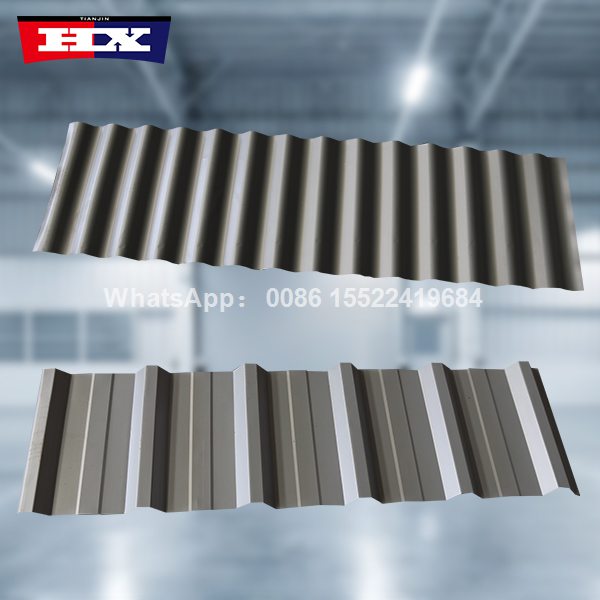

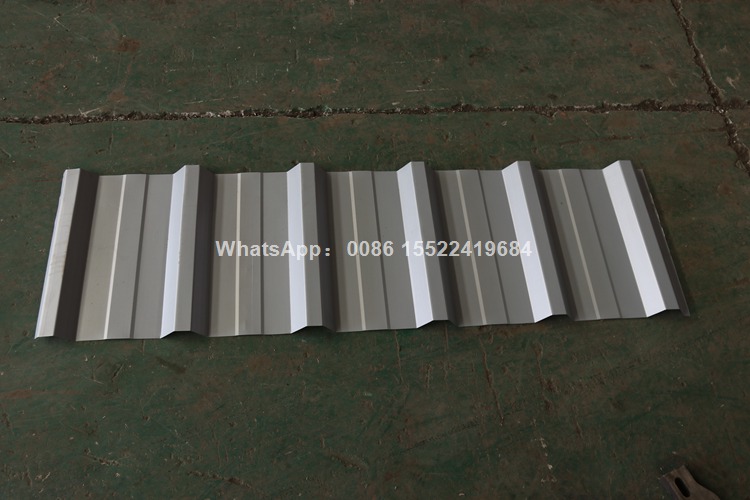

Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684

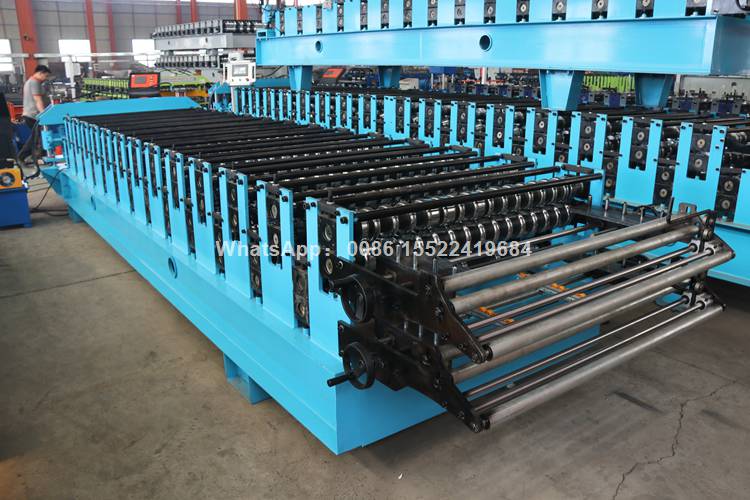

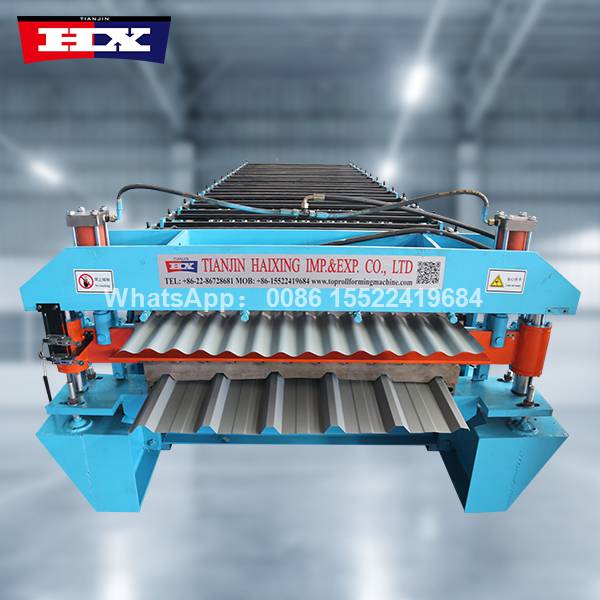

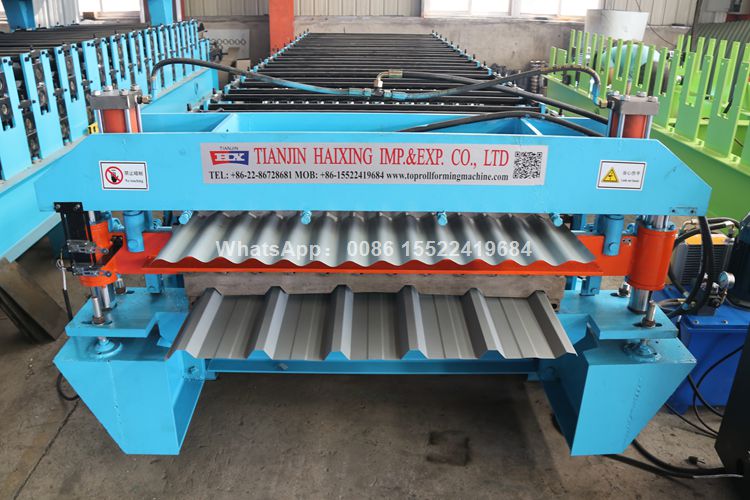

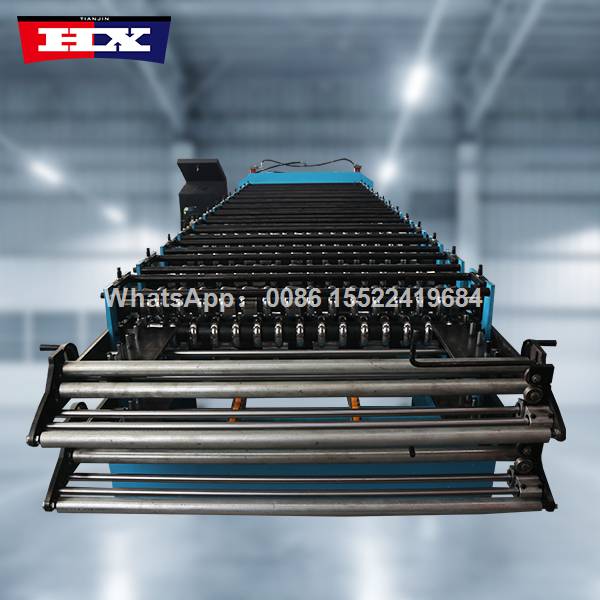

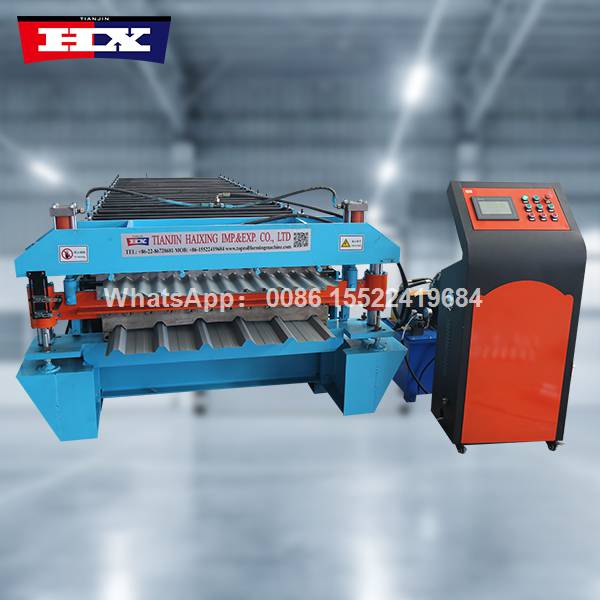

In the metal processing industry, space optimization and production versatility are critical to maintaining a profitable operation. Our double deck roll forming machine is the ultimate solution for factories looking to increase their product offerings without expanding their floor footprint. By stacking two distinct roll forming profiles into a single, integrated production line, this machine allows you to switch between different roofing or wall panel shapes seamlessly, giving you a decisive edge in today’s diverse construction market.
The primary advantage of our double deck roll forming machine is its intelligent, space-saving design. While traditional setups require two separate machines—doubling your investment in space, motors, and labor—our double-layer configuration allows you to produce two different types of metal sheets on the same base. This not only significantly reduces your capital expenditure but also slashes utility costs and floor space requirements, making it the most cost-effective choice for small-to-medium-sized metal sheet manufacturers.
We understand that high-efficiency production must never come at the expense of quality. Our machines are built with professional-grade components to ensure long-term reliability:

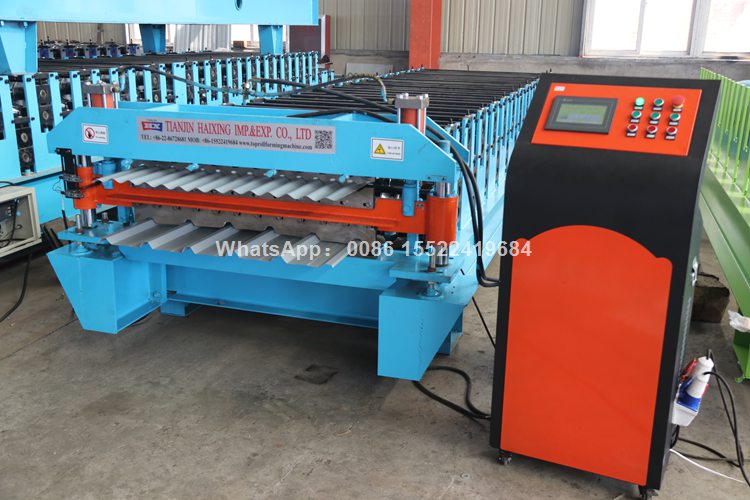

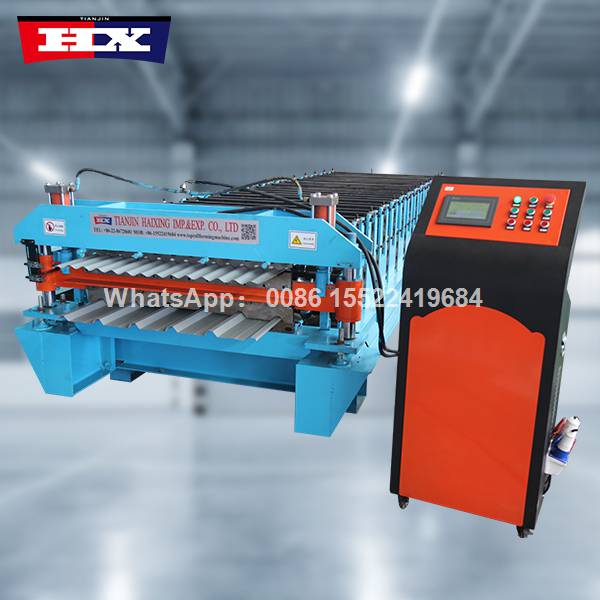

Advanced PLC Automation: Equipped with an intelligent Siemens or Delta PLC control system, the machine enables fully automated production. Operators can switch between the top and bottom decks, set cutting lengths, and manage batch quantities through a simple, high-definition touch interface.
Premium Material Quality: The forming rollers are manufactured from high-grade 45# steel, subjected to deep quenching, and finished with a 0.05mm hard chrome coating. This high-standard processing ensures extreme wear resistance and longevity, even under heavy, continuous-duty cycles.
Hydraulic Precision Cutting: The cutting mechanism uses high-strength Cr12 Mov alloy steel, heat-treated to 58-62℃ for maximum durability. This provides a clean, precise, and burr-free cut for every sheet, ensuring that your final products meet international architectural standards.
Stable Power Distribution: The machine is designed with a reliable, high-torque motor system that ensures smooth operation on both decks, providing consistent speed and accuracy regardless of which profile is being produced.
Contact us today to get a free quote and technical consultation.
Contact us today to get a free quote and technical consultation.
Double Layer Cladding Roll Forming Machine for Sale parameters
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 16+14 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+5.5KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 220V 60Hz 3Phase (As your requirement) |
| Forming Speed | 10-15 m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Looking for a reliable double layer roofing sheet roll forming machine?
Partnering with Haixing Industry Group means aligning your business with nearly 30 years of manufacturing excellence. When you choose our double deck roll forming machine, you benefit from:
Market-Ready Versatility: You can produce two different, highly sought-after panel profiles on one machine, allowing you to react quickly to varying customer demands without changing equipment.
Global Support & Expertise: We have successfully exported to over 150 countries. We provide end-to-end service, including customized profile design, remote installation guidance, and technical support.
Low Maintenance, High ROI: Our commitment to quality means fewer interruptions. We provide a 2-year warranty and a dedicated support team to ensure your production line stays running at peak performance.
Are you ready to optimize your factory’s potential? A double deck roll forming machine is more than just a piece of equipment—it is a strategic investment in the future of your business, offering unmatched flexibility and production speed in a compact footprint.
Looking for a personalized quote or technical consultation? Contact our expert team today. Let us help you select the perfect double-layer configuration to elevate your manufacturing standards and increase your market competitiveness.
