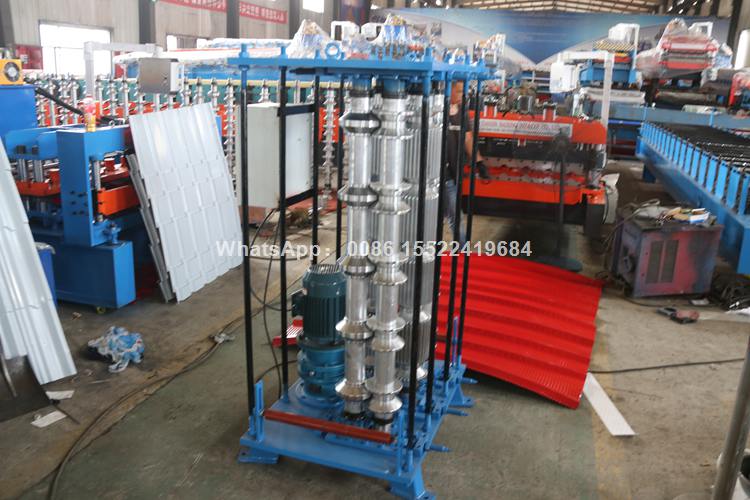

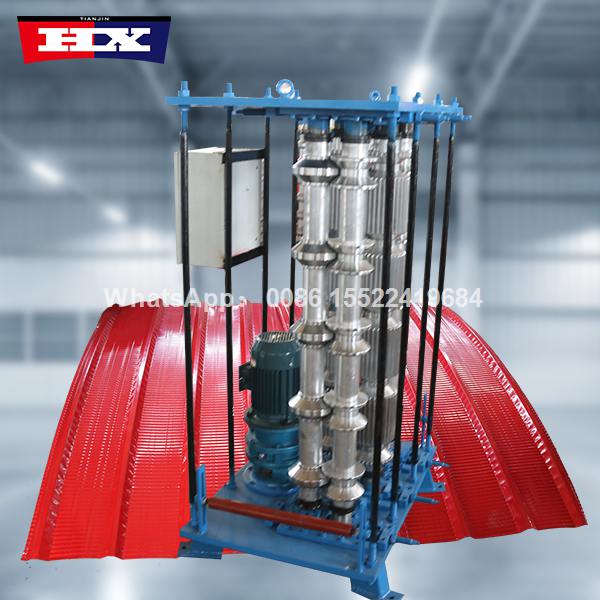

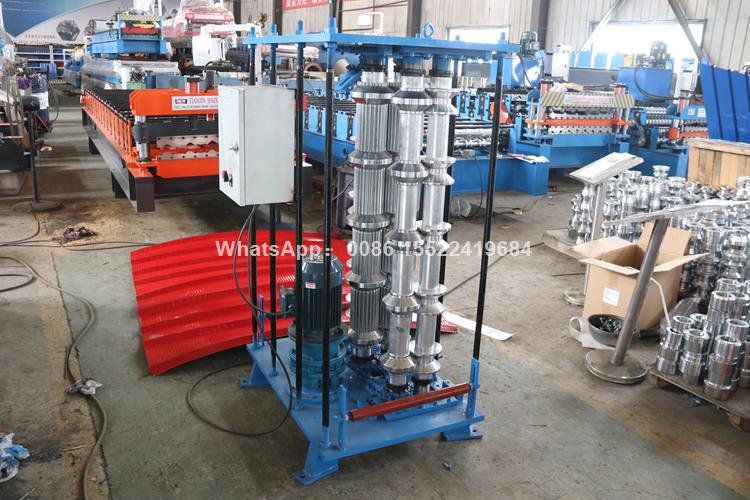

Curving Machine for 5-Rib Trapezoidal Panels

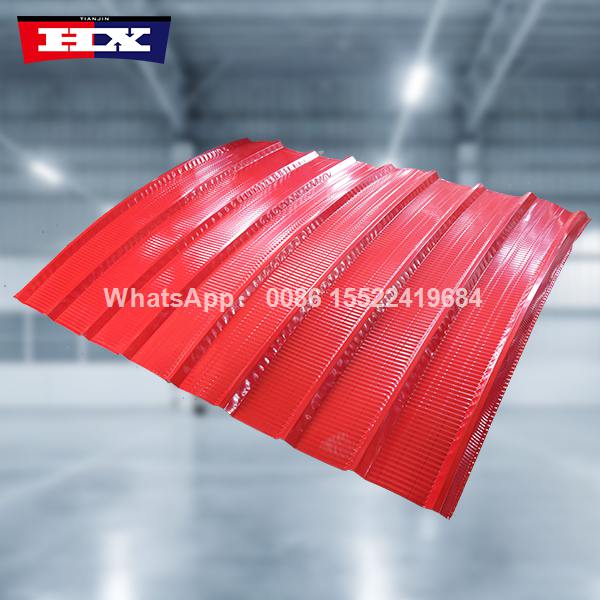

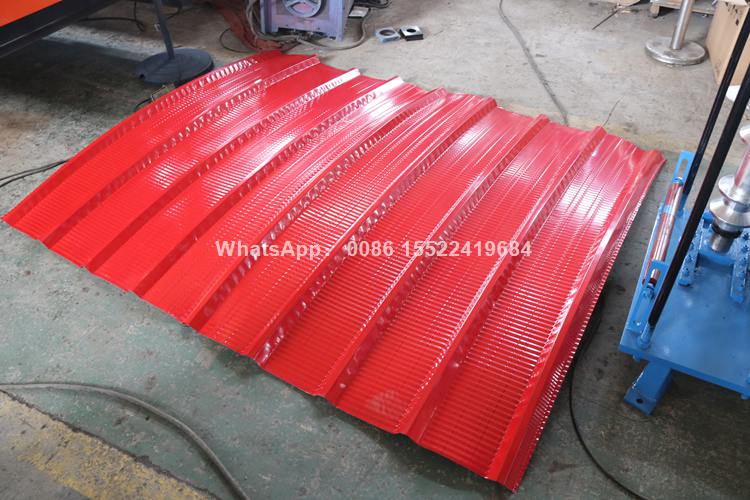

The curving machine designed for 5-rib trapezoidal panels is a vertical hydraulic system engineered for curving pre-formed roofing sheets. This vertical 5-peak trapezoidal curving machine is especially used in curved roof systems where precise arching of trapezoidal panels is required—such as in storage facilities, stadiums, and commercial buildings.
This curving machine supports panel thickness from 0.4 mm to 0.8 mm, and is suitable for steel, aluminum, or galvalume trapezoidal panels with 5 prominent peaks. It allows precise control of the curving radius via a hydraulic pressing mechanism, ensuring smooth and symmetrical arcs without damaging the coating or deforming the ribs.

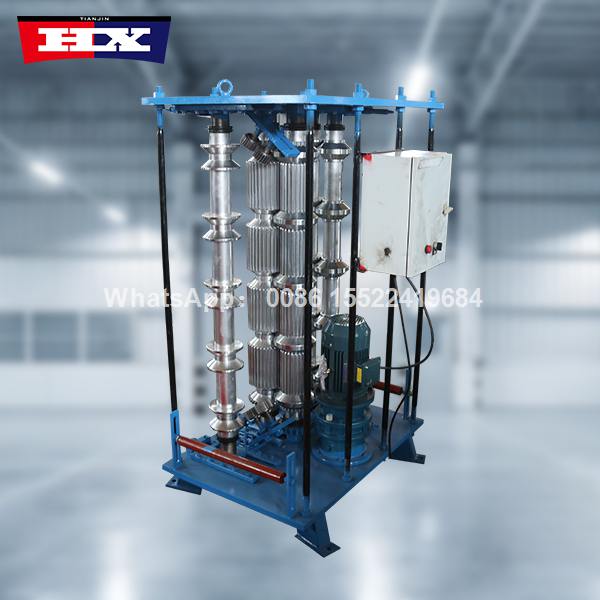

The structure features a solid frame, durable rollers, and adjustable press depth. It can achieve both concave and convex curves depending on project needs. With a user-friendly control interface (optional multilingual support), operators can quickly adjust curving speed, depth, and repeat settings.
Haixing provides voltage customization, online training, and global technical support to ensure safe operation and perfect installation. This machine is an ideal choice for metal building suppliers looking for advanced and flexible curving solutions.
Contact us to get a more favorable Standing Seam Panel Machine for Al-Mg-Mn Roofing price!
Contact us to get a more favorable curving machine price!
Curving Machine for 5-Rib Trapezoidal Panels
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 7.5+4KW |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Forming Speed | 8-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Looking for a reliable Curving Machine for 5-Rib Trapezoidal Panels price?
All-in-One Engineering Solutions
From initial concept to final production, we provide comprehensive support tailored to your needs.
Built to Last
Our machines are engineered for durability, delivering reliable performance over years of continuous operation.
Precision You Can Trust
Achieve consistent, micron-level accuracy in every product with our advanced roll forming technology.
Superior Materials
We use only premium-grade components to ensure strength, stability, and longevity.
Advanced Automation Systems
Equipped with cutting-edge electrical and control systems for enhanced efficiency and precision.
Haixing Industry Group – Precision Roll Forming Experts Since 1996
With nearly three decades of expertise, Haixing Industry Group specializes in designing and manufacturing high-performance roll forming machines and automated production lines. Trusted by over 5,000 clients in more than 150 countries, we turn custom requirements into reliable production solutions.
Our Core Values
Integrity as our foundation
Win-win cooperation as our mission
Our Promise
Customer-first mindset
Strict quality control at every stage
End-to-end technical support
Lifetime priority after-sales service
Global Reach. Proven Reliability. Customized Excellence.
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer for cold roll forming machine over 28 years.
Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
Q:What's the warrany for our machine?
A: we provide 2 years guarantee and provide lifetime technical support.
Q:How many workers is needed for the machine operation？
A: One worker is engough, the machine use automatic PLC control system.
Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
Q: What is the after- sale service?
A: we will supply lifetime technical support and supply quick-wear parts within 2 years.
Q: What's the delivery time?
A: 25 days after deposit receipt your payment
Q: Installation and training？
a.If buyers visit our factory and check the R BPR AG roof panel roll forming machine, we will teach you how to install and use the
machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the transportation and accommodation expenses.
