Size accurate, and seamless lap joint
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684

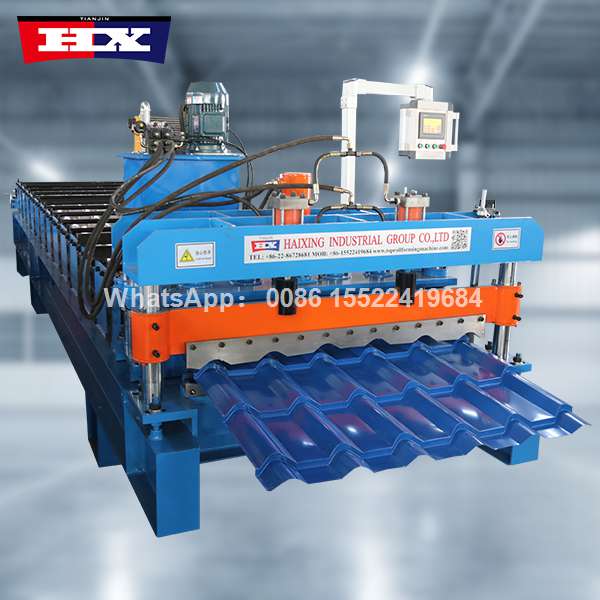

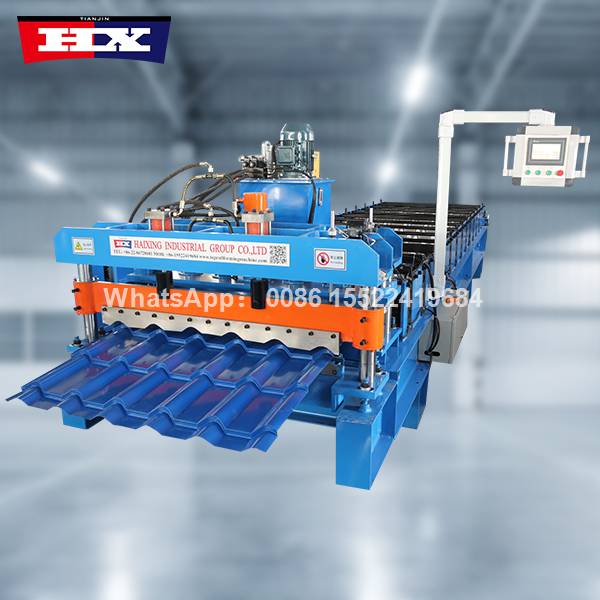

In the architectural and construction sectors, aesthetics and structural integrity are paramount. Our tile forming machine (Model 1000) is a premium-grade production line designed specifically to manufacture high-end glazed steel tiles that replicate the elegant look of traditional ceramic roofing while providing the unmatched durability and lightweight advantages of modern steel. If your business is looking to capture the high-demand residential and commercial roofing markets, this machine is your ultimate manufacturing solution.

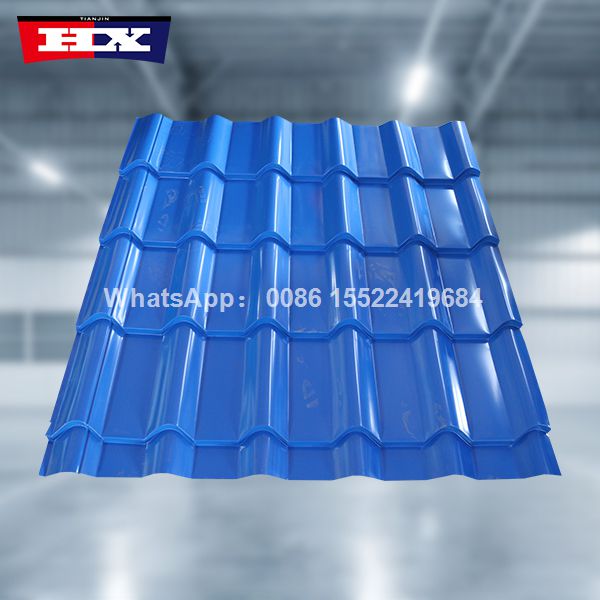

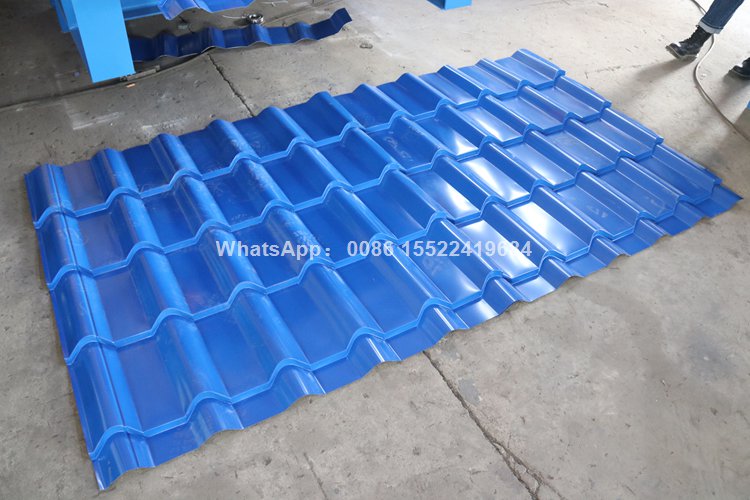

The 1000-type glazed tile is a favorite among architects and property owners for its classic, sophisticated appearance. Our machine is engineered to master the complex geometry of this profile. Through a multi-stage forming process, the machine achieves deep, consistent stamping and precise wave patterns, ensuring that each tile locks perfectly with the next. This structural precision not only enhances the building's aesthetic appeal but also guarantees superior water-tightness and weather resistance, satisfying the strictest international building codes.
We understand that B2B manufacturing requires consistency. Our tile forming machine is built to operate at peak performance, shift after shift, year after year:
Advanced PLC Control System: Equipped with a high-performance Siemens or Delta PLC, the machine offers full automation. Operators can precisely control tile length, step height, and batch volume through an intuitive, touch-screen interface, ensuring zero-waste production.

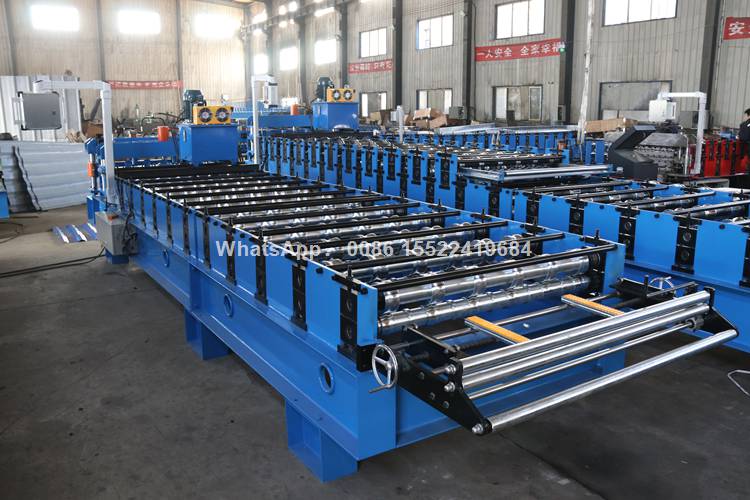

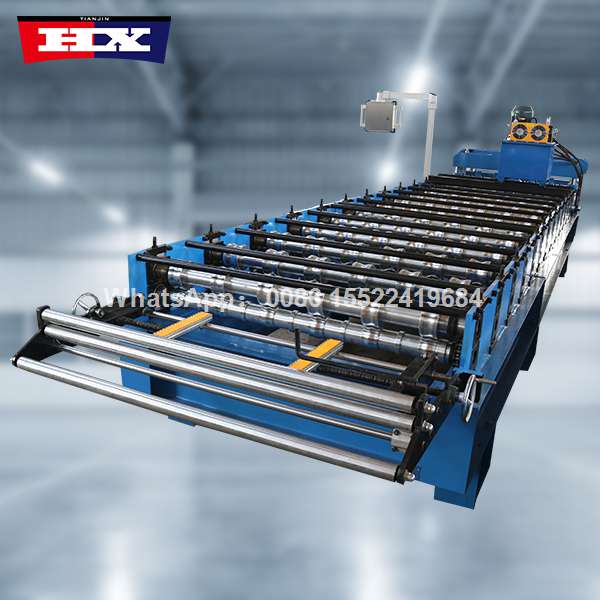

Premium Forming Rollers: The rollers are the heart of our machine. We utilize high-grade 45# steel, precision-machined and subjected to high-frequency quenching. A 0.05mm hard chrome coating is applied to provide extreme resistance to surface oxidation and wear, maintaining geometric accuracy even after millions of cycles.

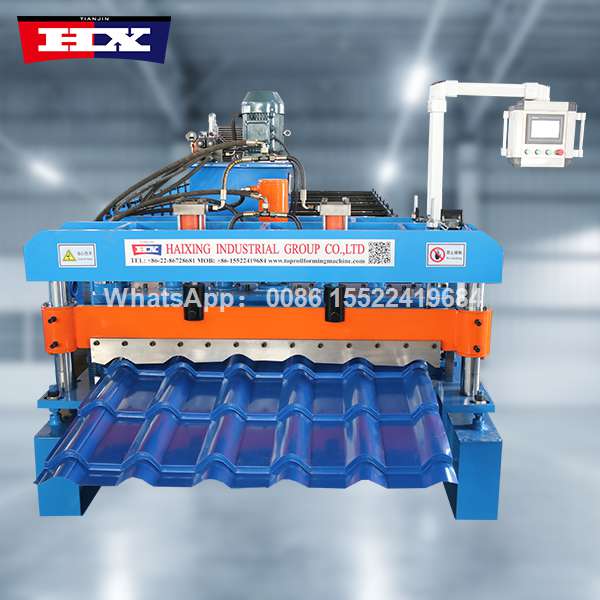

Hydraulic Step-Forming Precision: The 1000-type tile requires precise "stepping" to create the signature glazed look. Our hydraulic step-forming mechanism is engineered for smooth, high-torque operation, creating uniform tile steps without putting undue stress on the metal surface.

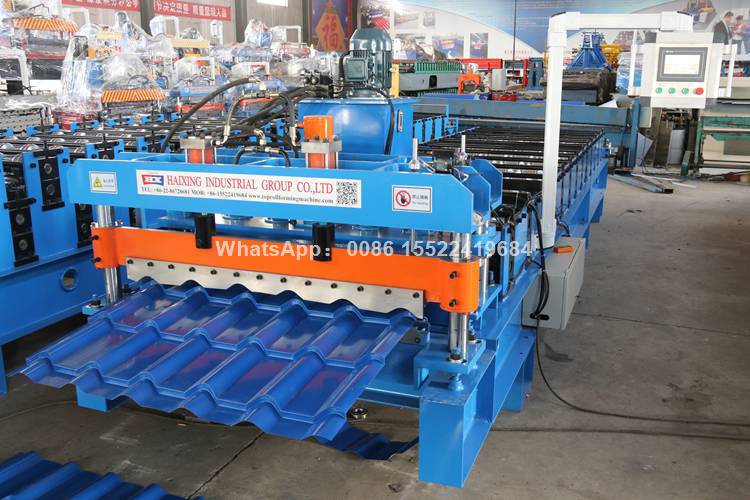

Clean-Cut Finish: Our machine features a heavy-duty hydraulic shearing unit with blades made from Cr12 Mov alloy steel (heat-treated to 58-62 HRC). This ensures a clean, smooth cut every time, eliminating the need for any secondary grinding or edge treatment.
Contact us to get a more favorable tile forming machine price!
Contact us to get a more favorable tile forming machine price!
Metal Roof Tile Forming Machine – Glazed Tile Roll Forming Equipment
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1000mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 14 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Forming Speed | 8-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Looking for a reliable tile forming machine price?
With nearly 30 years of experience in the roll-forming industry, we provide more than just equipment—we provide a scalable business model. Choosing our tile forming machine offers you:
Unmatched Versatility: Our design team can customize the roller profiles to match your specific market needs, ensuring you produce the exact tile style your local contractors demand.
Global Trust & Support: We have successfully supported over 5,000 production lines across 150 countries. Our global logistics and technical support teams are always available to assist with factory layout planning, remote installation guidance, and staff training.
Long-Term Investment Value: With a 2-year warranty and a robust supply chain for spare parts, we ensure your production remains profitable and uninterrupted, giving you a faster return on your capital investment.
The market for high-quality, lightweight metal roofing is growing rapidly. By integrating our 1000-type glazed tile forming machine into your facility, you are investing in a proven, high-speed, and reliable technology that empowers you to deliver premium-quality products to your customers with confidence.
Ready to enhance your production capacity? Contact our technical sales team today for a personalized proposal and a detailed technical specification. Let us help you set the new standard for quality in your roofing component market.
