Size accurate, and seamless lap joint
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684

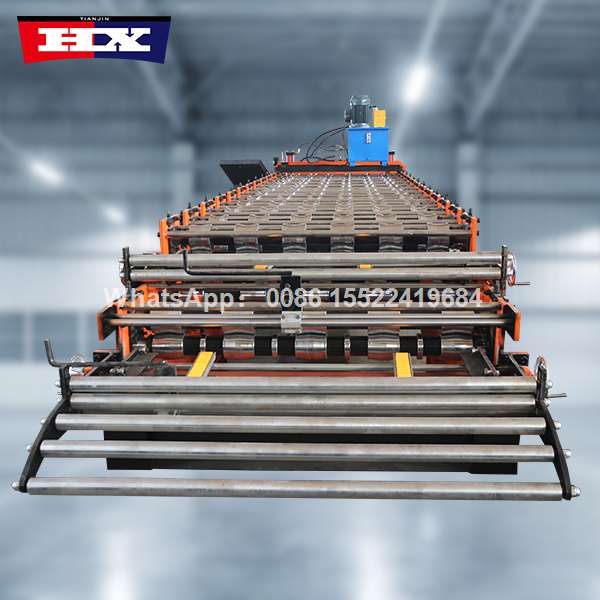

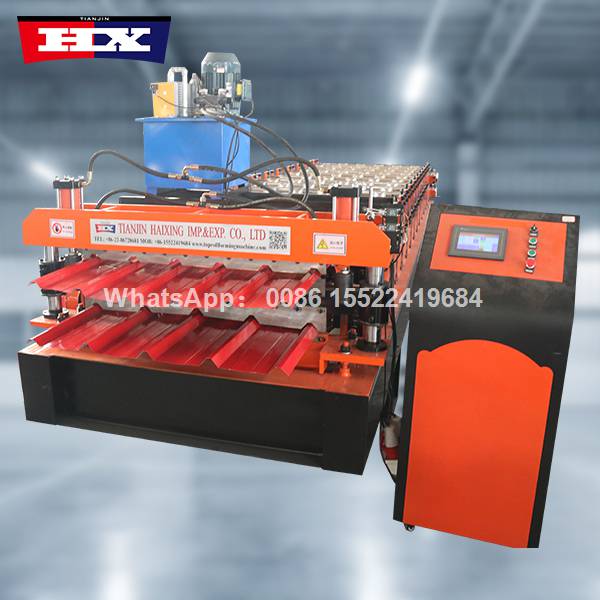

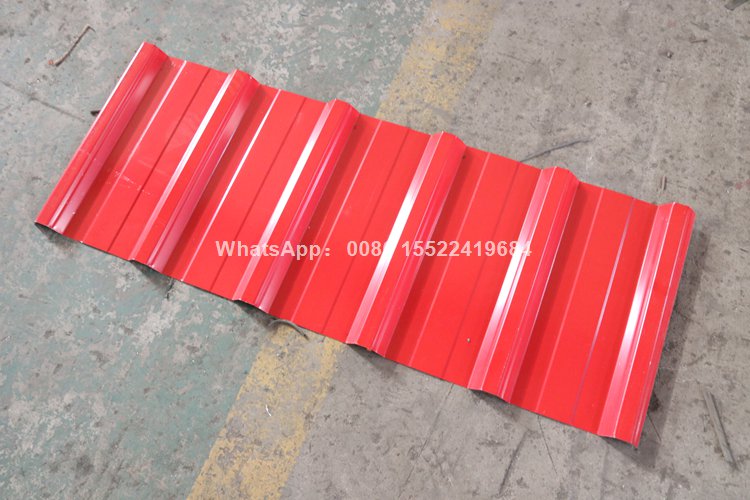

In the highly competitive metal roofing industry, the ability to switch rapidly between different panel profiles is a critical asset. Our professional roof roll forming machine is specifically engineered for manufacturers who demand high efficiency, space optimization, and superior output quality. Featuring a versatile dual-layer configuration, this machine allows you to produce both TR4 and TR5 roofing profiles on a single, compact base, making it the perfect solution for factories aiming to maximize productivity while minimizing floor space and capital investment.

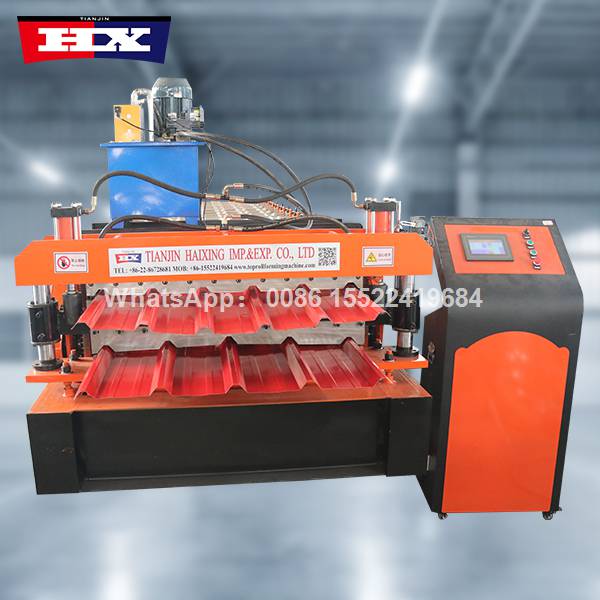

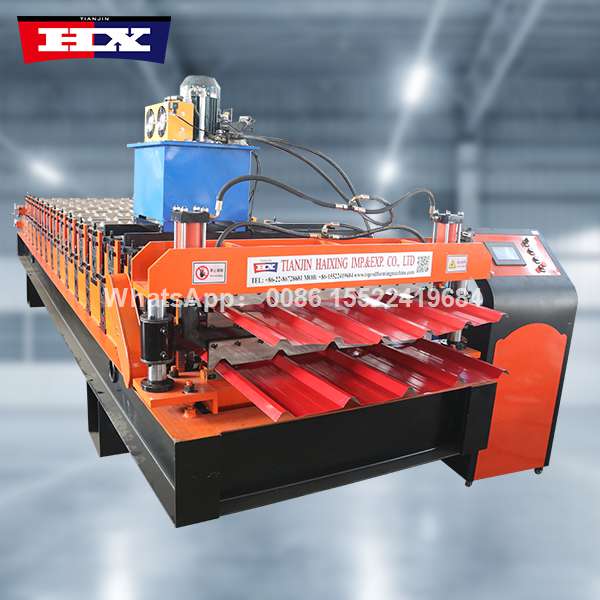

The primary advantage of our dual-layer roof roll forming machine is its intelligent, space-saving design. While traditional setups often require two separate production lines—doubling your investment in foundations, motors, and labor—our machine enables you to manufacture two distinct, high-demand roofing styles seamlessly. This innovation significantly reduces your utility costs and workshop footprint, allowing small-to-medium-sized manufacturers to compete effectively with larger industrial players.
We understand that high-speed production requires equipment that never falters. Our machines are built with professional-grade components to ensure long-term reliability and precision:

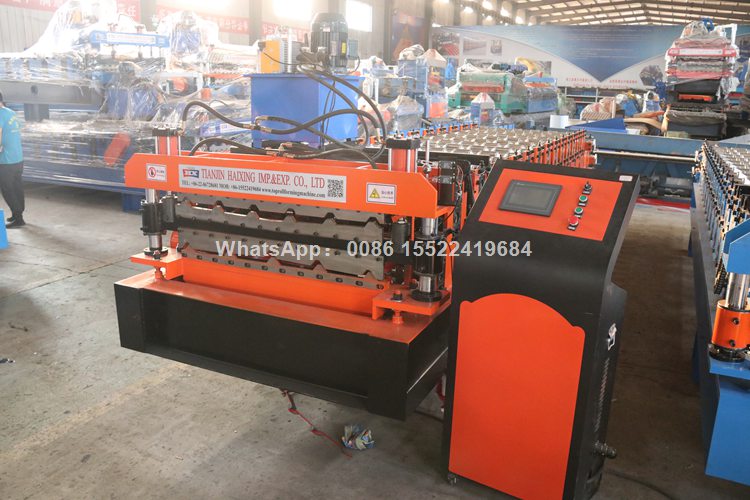

Advanced PLC Automation: Equipped with a high-performance Siemens or Delta PLC control system, the machine offers fully automated production. Operators can easily toggle between the TR4 and TR5 layers, set precise sheet lengths, and manage batch quantities via an intuitive, high-definition touch interface, virtually eliminating human error.
Superior Material Integrity: The forming rollers are precision-machined from high-grade 45# steel, subjected to deep high-frequency quenching, and finished with a 0.05mm hard chrome coating. This high-standard treatment provides exceptional surface hardness and wear resistance, ensuring the rollers remain durable even after years of continuous, high-volume production.
Hydraulic Precision Cutting: The cutting mechanism utilizes high-strength Cr12 Mov alloy steel, heat-treated to 58-62℃. This ensures a clean, smooth, and burr-free cut for every sheet, meeting international architectural standards and eliminating the need for any secondary post-processing.
Stable Power Distribution: Engineered with a robust, high-torque motor system, our machine provides smooth, vibration-free operation on both layers, ensuring consistent profile depth and structural accuracy for both TR4 and TR5 panels.
Contact us to get a more favorable Roof roll forming machine Tr4 Tr5 price!
Contact us to get a more favorable Roof roll forming machine Tr4 Tr5 price!

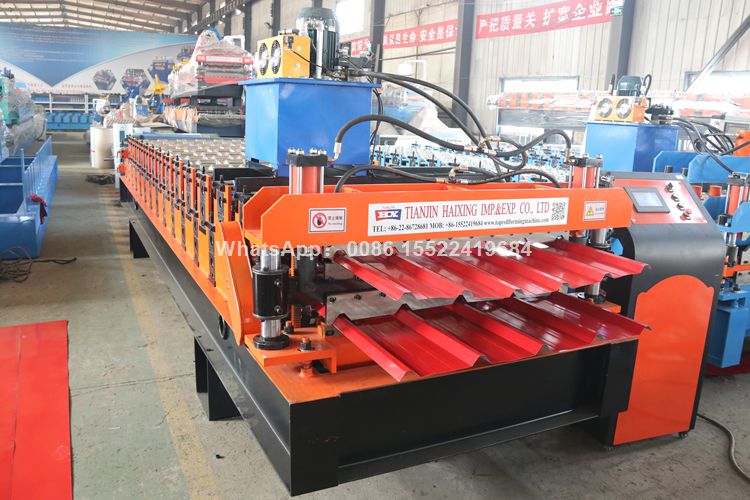

Roof roll forming machine Tr4 Tr5
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.8mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 14 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Forming Speed | 8-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Looking for a reliable Roof roll forming machine Tr4 Tr5 price?
With nearly 30 years of industry experience and a footprint spanning over 150 countries, we are dedicated to providing comprehensive production solutions. Choosing our roof roll forming machine means benefiting from:

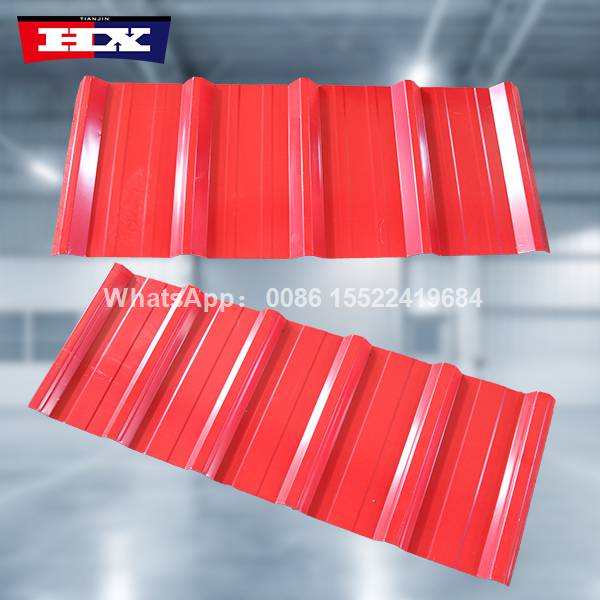

Market-Ready Versatility: Producing both TR4 and TR5 profiles on one machine allows you to react quickly to changing client demands, increasing your agility in the construction market.
Global Support & Expertise: We provide end-to-end service, including customized profile design, remote installation guidance, and comprehensive operator training. Our global team ensures that your machine integration is seamless and professional.
Low Maintenance, High ROI: Our commitment to quality means fewer interruptions. With a 2-year warranty and a dedicated support team for quick-wear parts, we ensure your production line remains a consistent profit center.
Are you ready to optimize your factory’s potential? A dual-layer roof roll forming machine is more than just equipment—it is a strategic investment in the future of your manufacturing business, offering unmatched flexibility and production speed in a compact, highly reliable package.
Looking for a personalized technical proposal or a competitive quote? Contact our expert team today. Let us help you select the perfect configuration to elevate your manufacturing standards and capture new, high-value opportunities in the roofing industry.
