Size accurate, and seamless lap joint
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684

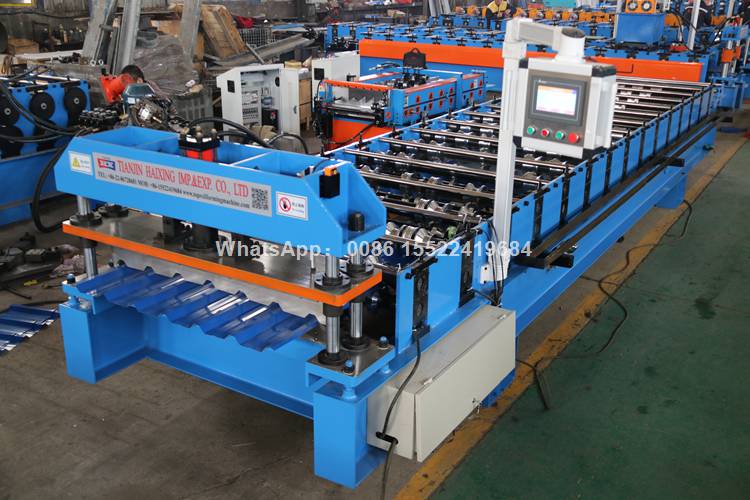

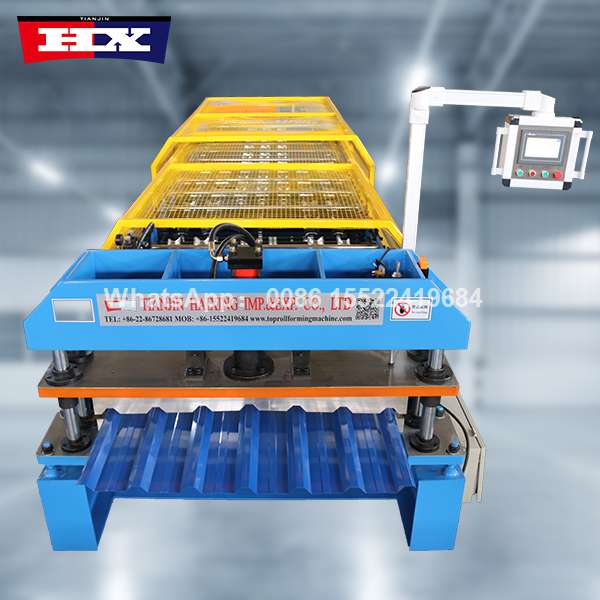

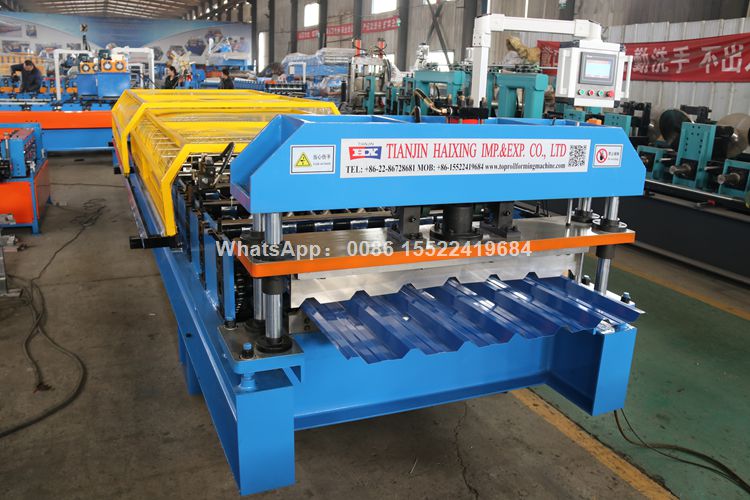

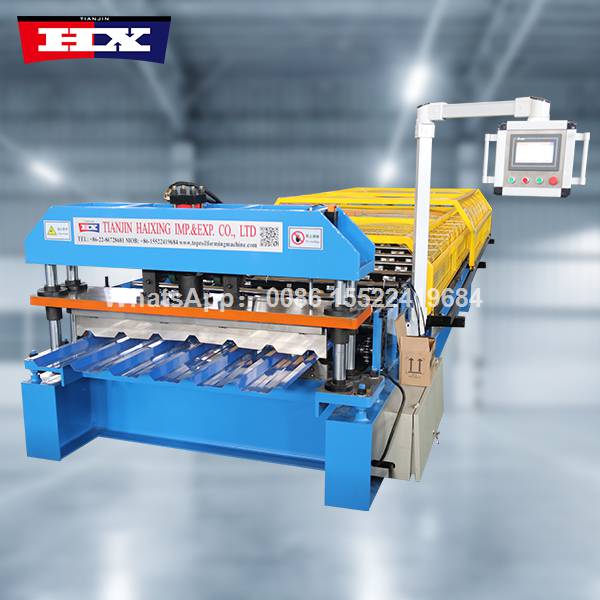

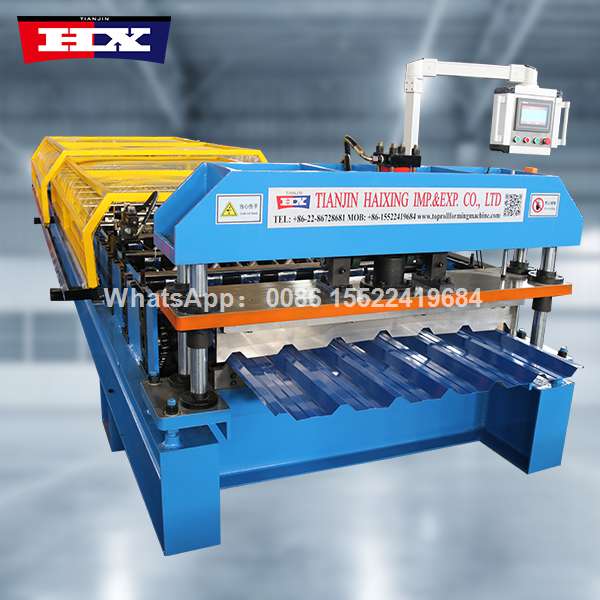

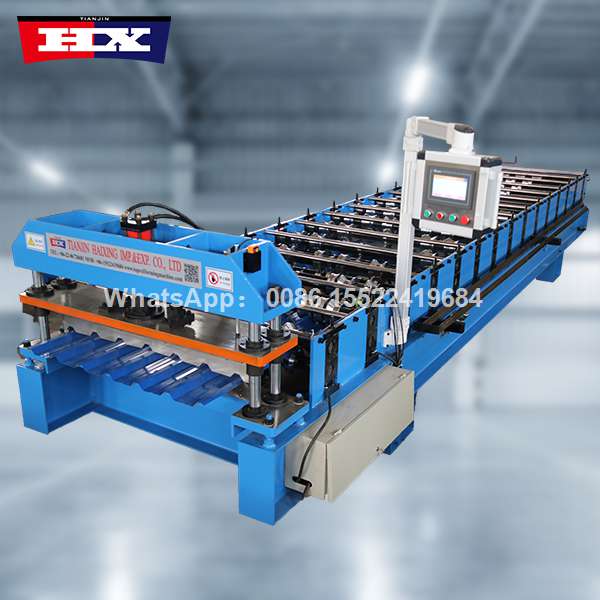

Iron sheet making machine TP25 Details

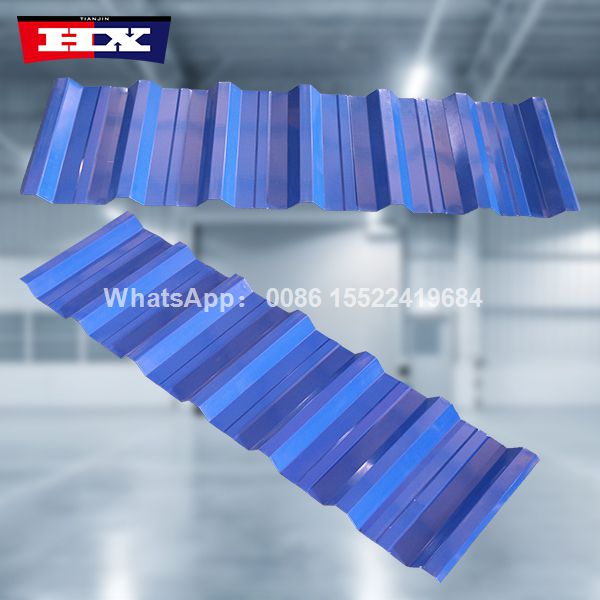

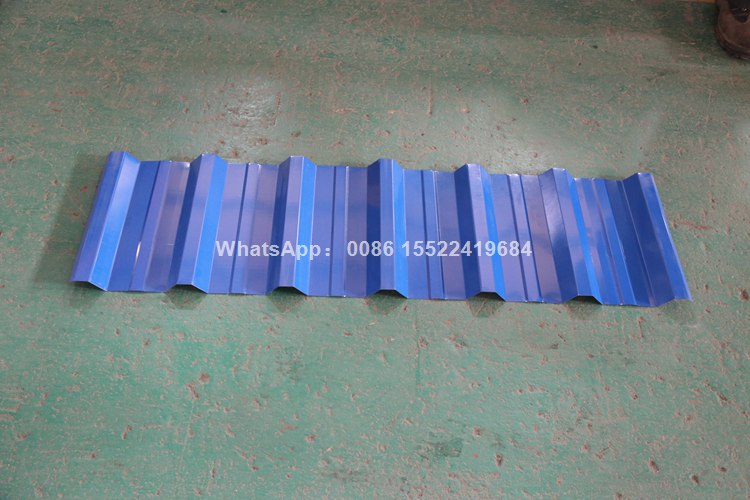

The TP25 Iron Sheet Making Machine is designed for producing trapezoidal roofing sheets with a 25mm rib height. It features precision roll forming, PLC automatic control, and hydraulic cutting for efficient and accurate sheet production. Suitable for galvanized, galvalume, and color-coated steel coils, this machine is ideal for residential, industrial, and agricultural roofing projects. Custom profiles and panel dimensions are available upon request, making it a reliable solution for versatile metal roofing needs.
Contact us to get a more favorable iron sheet making machine price!
Contact us to get a more favorable Iron sheet making machine TP25 price!
Iron sheet making machine TP25 parameters
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.3-0.6mm |
| Width | 1220mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 16 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+3KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Forming Speed | 8-15m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Looking for a reliable 925 Tile Roll Forming Machine price?
Why Choose Us
28 years of professional R&D team
One-stop-solution for roll forming machine
Long-life stable running
High-precision finished products
High-quality raw materials
Brand electrical parts
About us
Since 1996 year, Haixing Indrustry Group main products have evolved from a standard roll forming machine to a customized automated roll forming equipment production line, cooperating with 150+ countries & 5,000 + partners，always adhering to the concept of "honesty is our aim, win win is our pursuit", insisting on the service principles of "customer first, quality first, service first, after sales first", efficiently and professionally complete the products required by customers.
FAQ
Q:Are you manufacturer?
A:Yes,we are manufacturer for cold roll forming machine over 28 years.
Q: if you can accept OEM? Design and manufacture according our photo.
A: Yes, we can accept OEM,we owned expert engineer team, and use famous brand components according your demands.
Q:What's the warrany for our machine?
A: we provide 2 years guarantee and provide lifetime technical support.
Q:How many workers is needed for the machine operation？
A: One worker is engough, the machine use automatic PLC control system.
Q.Can you be responsible for transport?
A.Yes,we owned expert export team, we can arrangement for you to your destination port or address.
Q:What service can you provide before order?
A:About the pre-sale service, We provide professional solutions according your demands, such as design, technical parameter, delivery flow etc. at the same time, we can supply invitation letter for your visit our factory and know more our factory.
Q: What is the after- sale service?
A: we will supply lifetime technical support and supply quick-wear parts within 2 years.
Q: What's the delivery time?
A: 25 days after deposit receipt your payment
Q: Installation and training？
a.If buyers visit our factory and check the R BPR AG roof panel roll forming machine, we will teach you how to install and use the
machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, we could go abroad to guide you for free, but you should pay the transportation and accommodation expenses.
