Size accurate, and seamless lap joint
Various shapes can be customized, beautiful version
Fast production speed and high work efficiency
Automatic control to reduce labor costs
Processed by stable operation, high precision and long service life.
Email: info@hx-machinery.com
WhatsApp: 0086 15522419684

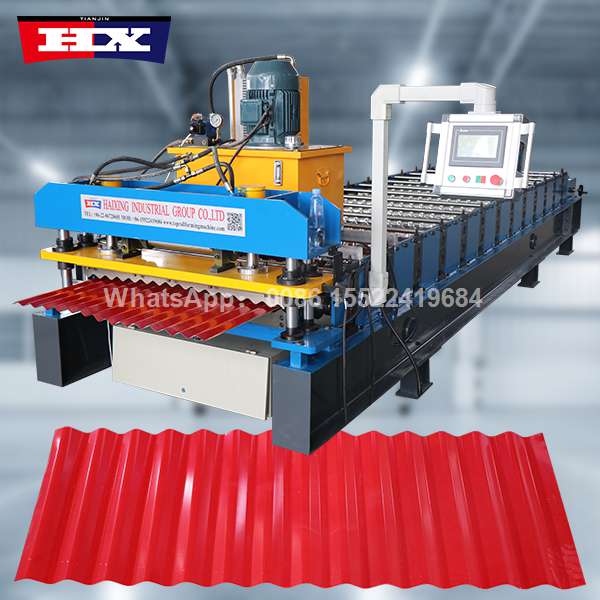

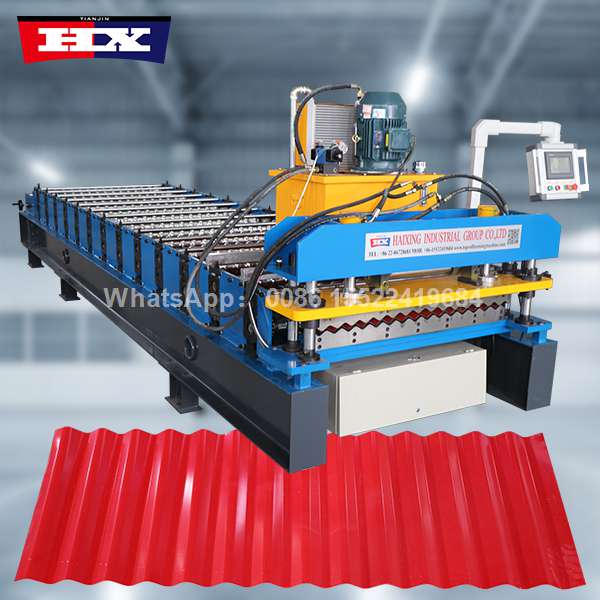

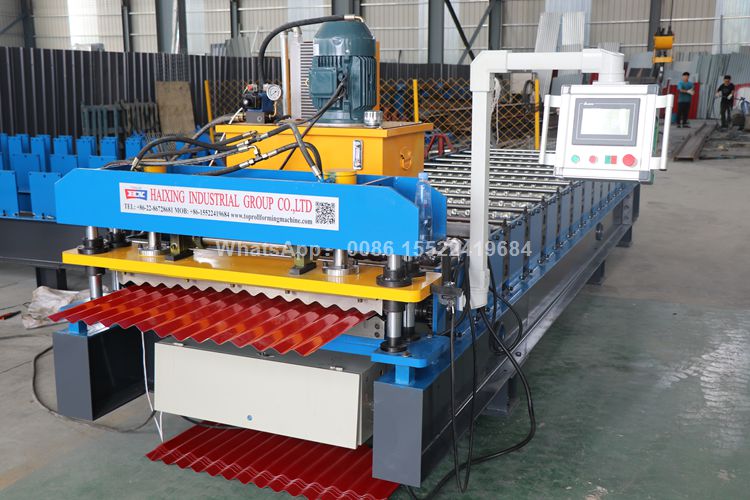

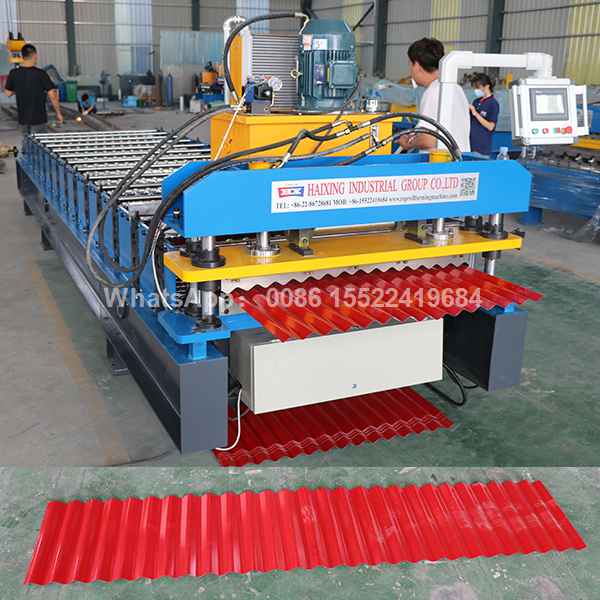

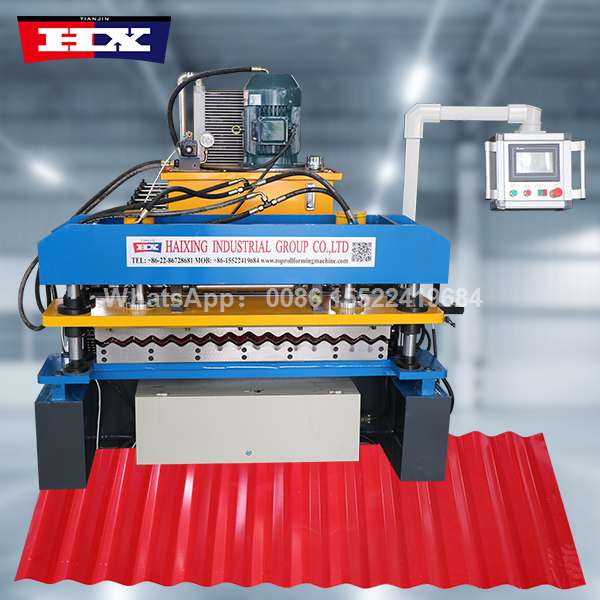

In today’s fast-paced construction market, manufacturing efficiency and product consistency are the cornerstones of your success. As a leading manufacturer of cold roll forming equipment, we proudly present our high-performance corrugated sheet making machine. Designed for high-speed production and precision engineering, this machine is the ideal solution for factories looking to produce durable, high-quality corrugated metal roofing panels for industrial, commercial, and agricultural projects.

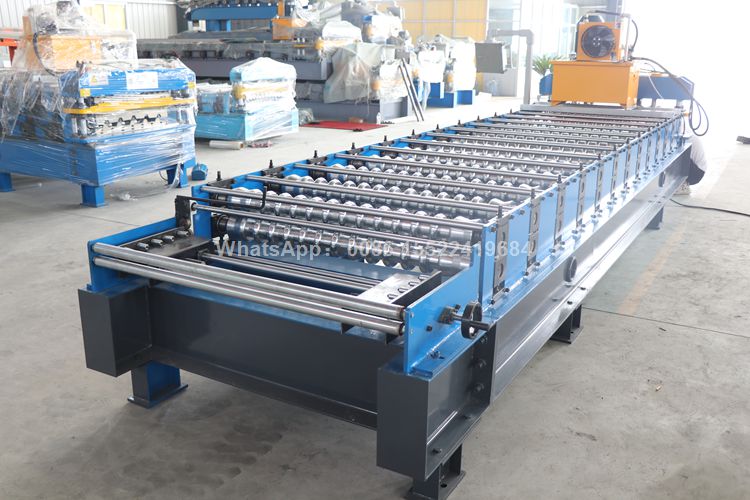

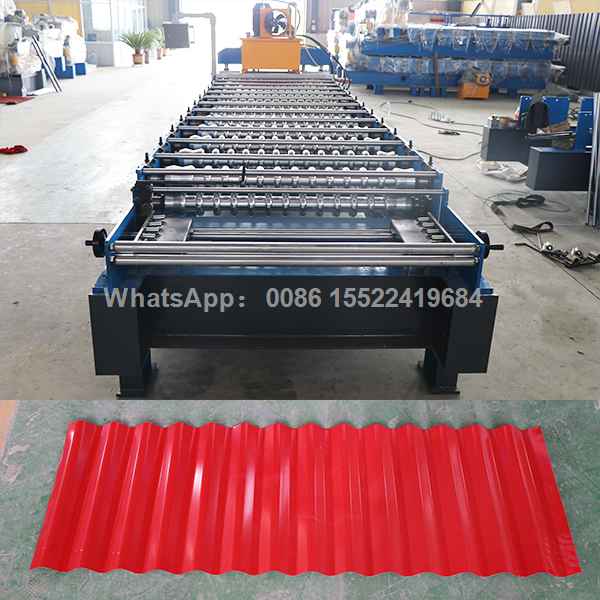

Our corrugated sheet making machine is the result of nearly three decades of R&D in cold roll forming technology. We understand that the perfect roofing sheet requires more than just speed—it demands absolute dimensional accuracy. Our machine features a multi-station precision roller system that ensures every wave is uniform and every sheet is perfectly formed. This precision creates seamless lap joints during construction, which are critical for maximizing waterproofing performance and ensuring long-lasting structural integrity.
Fully Automated Productivity: Equipped with a high-end PLC control system (Siemens or Delta), our corrugated sheet making machine allows for seamless batch management. Users can set production lengths, quantities, and speeds via a user-friendly touch interface, significantly reducing labor costs and minimizing human error.
Premium Materials and Durability: We refuse to compromise on quality. The machine’s rollers are crafted from high-grade 45# steel and treated with deep quenching and 0.05mm hard chrome plating. This advanced material science ensures extreme wear resistance and a remarkably long service life, even under continuous 24/7 production cycles.
Versatile Customization: We recognize that your market needs may be unique. Our engineering team provides fully customizable configurations to meet your specific requirements, including adjustable wave heights, varying pitches, and specialized voltage settings to match global electricity standards.
Optimized Efficiency: With a production speed ranging from 8 to 15 meters per minute, this machine is designed to maximize your daily throughput. Whether you are scaling up your production capacity or upgrading your current line, our system offers the efficiency needed to gain a competitive edge.
Contact us to get a more favorable roofing sheets machine price!
Contact us to get a more favorable roofing sheets machine price!

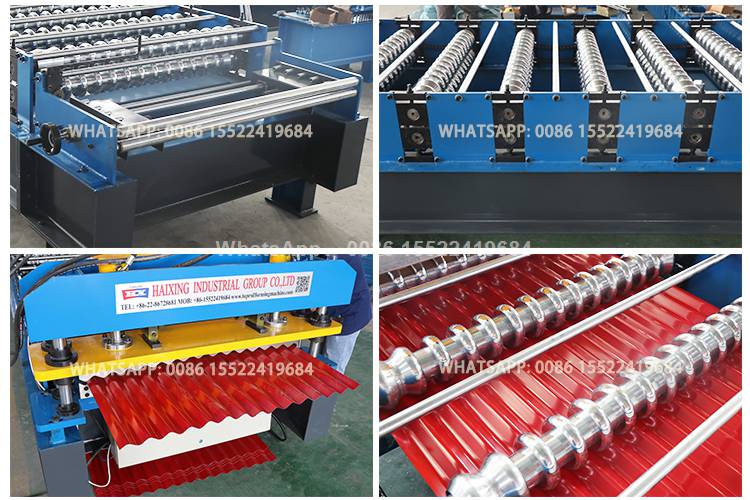

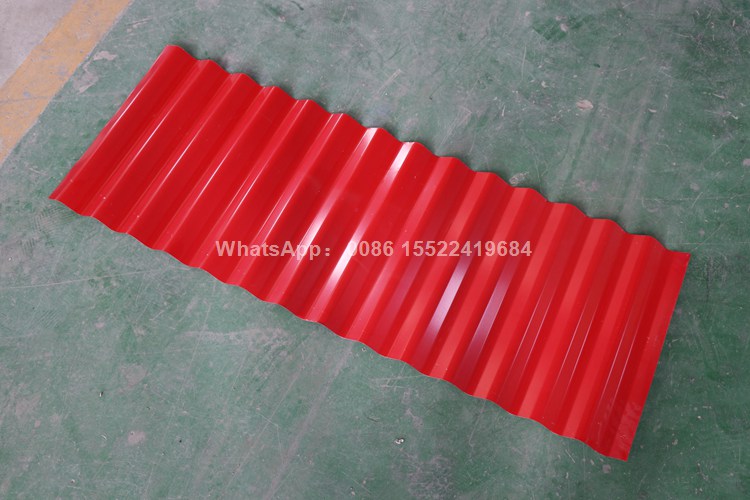

Details Pictures
corrugated sheet making machine parameters
| Formed Material | GI/GL, PPGI/PPGL |
| Thickness | 0.25-0.8mm |
| Width | 1000mm(customized) |
| Decoiler | Manual decoiler(will give you as free) |
| Roller station | 14 rows (As your requirement) |
| Diameter of shaft | 70mm solid shaft |
| Material of rollers | 45# steel, forging with chromium plate 0.05mm |
| Cutter | Cr12 Mov quenched treatment 58℃-62℃ |
| Power | 5.5+4KW |
| Control system: PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. |
| Control system Language | English, Spanish, etc.(Support multiple languages) |
| Voltage | 380V, 50Hz, 3Phase (customizable) |
| Forming Speed | 20m/min (The speed depends on the shape of the tile and the thickness of the material.) |
Looking for a reliable corrugated sheet making machine price?
At Haixing Industry Group, we believe that providing a machine is only the beginning of our journey with you. When you invest in our corrugated sheet making machine, you gain access to a world-class support system:
Global Track Record: With successful installations in over 150 countries, we possess the expertise to handle international logistics, site installation guidance, and technical troubleshooting.
Commitment to Quality: We provide a 2-year warranty on all machines and maintain a dedicated team for lifetime technical support and quick-wear part replacement.
Expert Consultation: From initial factory planning and sheet profile design to operator training, we walk with you every step of the way to ensure your production line performs at its absolute peak.
The construction industry is constantly evolving—are you equipped to meet the growing demand for high-quality metal roofing? Our corrugated sheet making machine offers the perfect balance of robust performance, cost-efficiency, and professional reliability.
Take your production capacity to the next level. Contact us today to receive a free technical proposal, a detailed equipment catalog, and a personalized quote for your business. Let us help you transform your manufacturing capability with the industry’s most trusted roll forming technology.
